Описание
Product Feature
1、Manufactured by our enterprise;
2、Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable;
3、The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability;
4、The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation;
5、Compact structure can effectively save installation space;
6、There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch;
7、Mounting accessories with various specifications are optional.

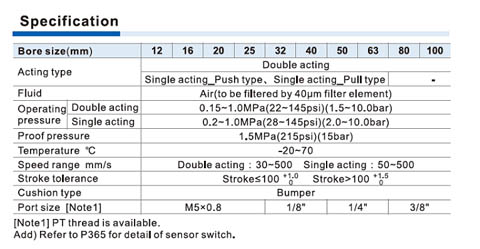

Specifications

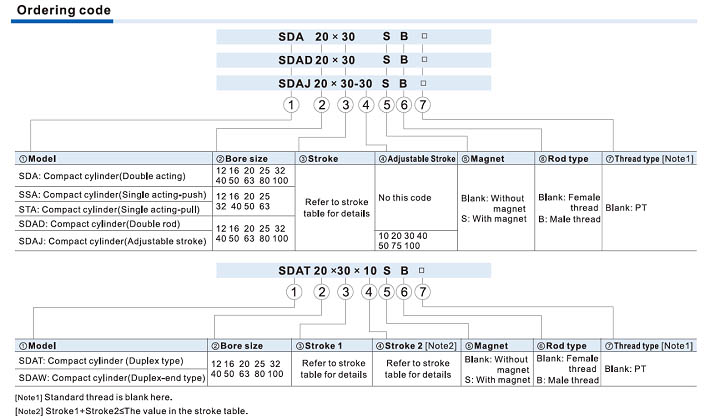

Ordering Code
Symbol

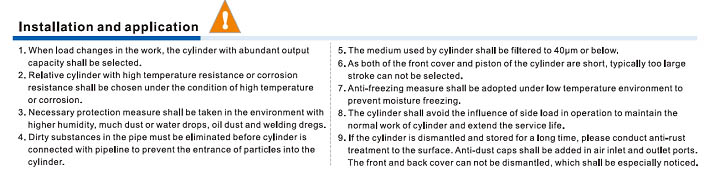

Installation and Usage
