Описание
Product Feature

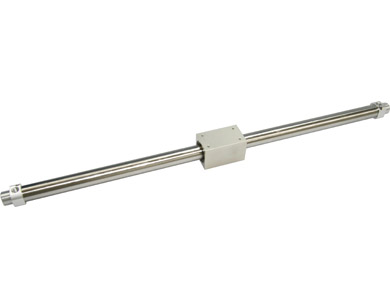

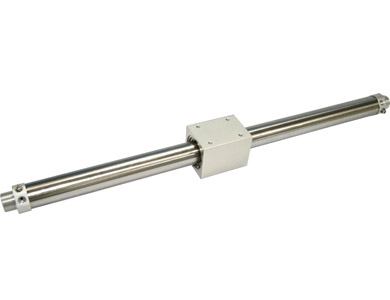

1.This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobile piston fitted with annular magnets. The mobile carriage is also equipped with magnets to provide magnetic coupling (carriage/piston). The carriage slide freely along the main tube.
2.It is dust-proof as the isolation between the carriage and piston.
3.It is compact in space.
4.The non adjustable rubber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder ensure the smooth action.
Installation and operation.pdf

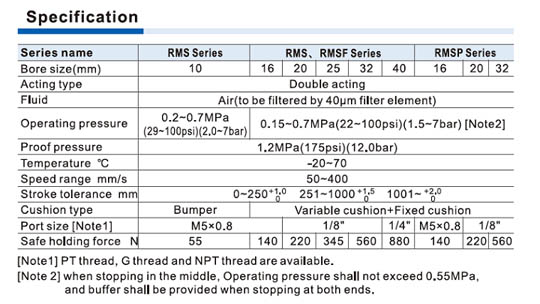

Specifications

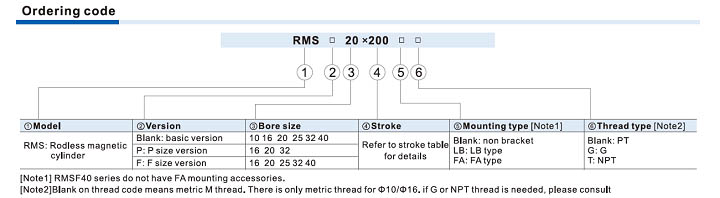

Ordering Code
Symbol
