Описание
Product Feature
1.JIS standard is implemented.
2.Cylinder can be mounted from 4 directions, and convenient to install and use.
3.Multitudinous cylinder can be mounted side by side to save space.
4.The front end of the cylinder is designed with boss. Centering can be done easily.
5.The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
6.With magnet type is of the feature of position sensing.
7.There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
8.The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.

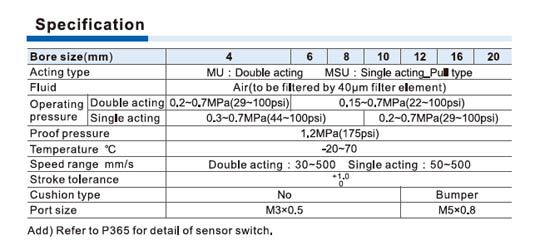

Specifications

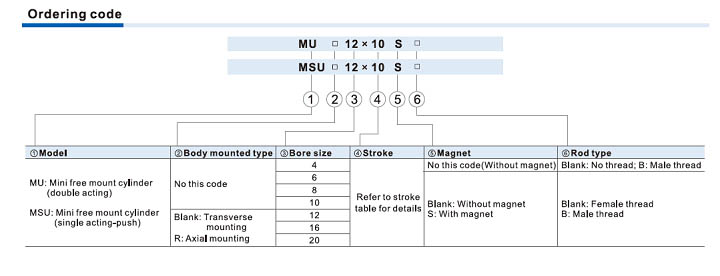

Ordering Code
Symbol
Installation and Usage
