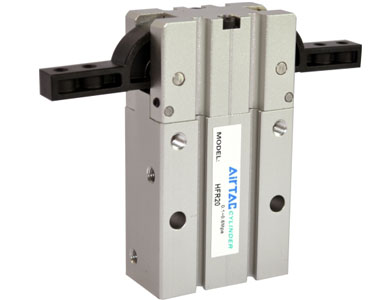

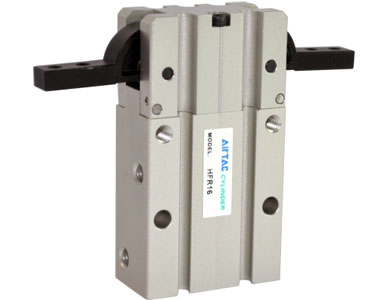

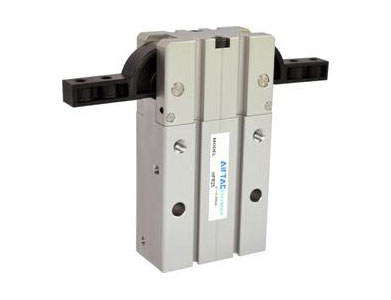

HFR Series Air gripper

Артикул: b5a9f9cf856c Категории: , , Метки: ,

Описание

Product Feature

1.open/close type, simplify the gripping action.
2.A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
3.Dust proof is designed in the finger part, which is applicable to special working environment.
4.All series are all attached with magnet.
5.Many mounting types to be choosed.

Installation and operation.pdf

HFR Series Air gripper Product Feature

Specifications

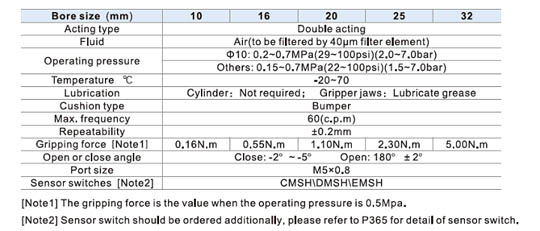

HFR Series Air gripper Specifications

Ordering Code

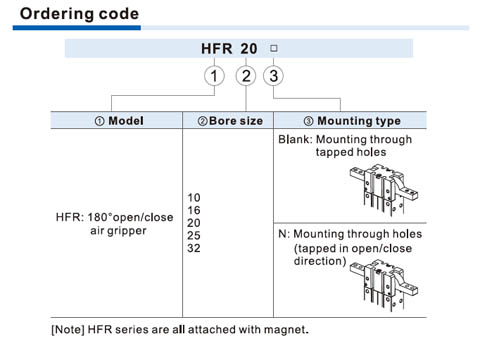

HFR Series Air gripper Ordering Code

Symbol

HFR Series Air gripper Symbol

Installation and Usage

HFR Series Air gripper Installation and Usage

Files

PDF

CAD files

3D Model
